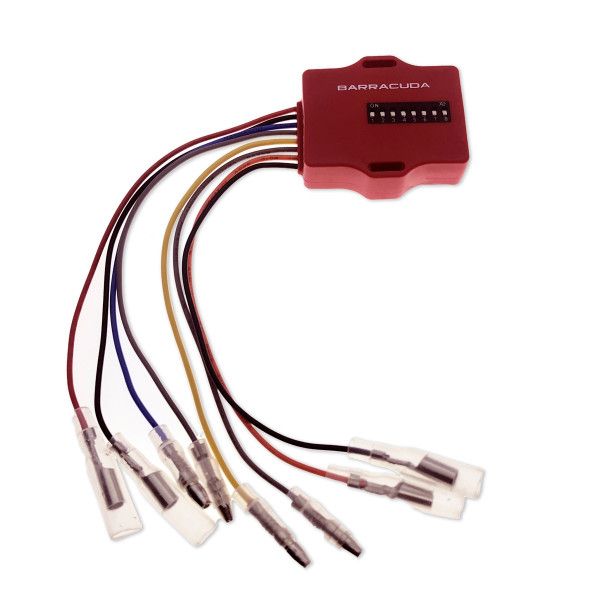

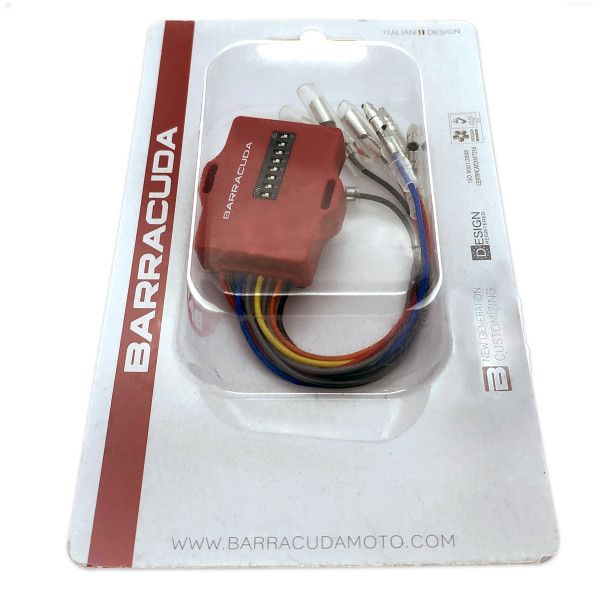

BARRACUDA RELAY FOR CAN-BUS SYSTEM

BARRACUDA RELAY FOR CAN-BUS SYSTEM

• The CAN-BUS RELAY BARRACUDA is an electronic component required for the correct operation and flashing of the direction indicators of most vehicles equipped with the CAN-BUS system.
• The CAN-BUS RELAY supplies the electrical load necessary for the proper functioning and flashing of the BARRACUDA LED indicators through a combination of the appropriate switches.
• It is possible to control up to 2 channels, for example: rear left direction indicators and rear right direction indicators.
• The CAN-BUS BARRACUDA relay can also be used on bikes equipped with original LED indicators.

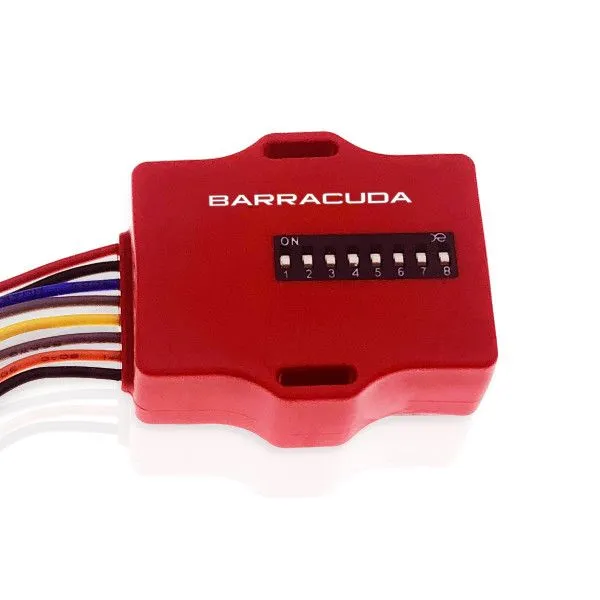

The following resistance values can be set:

• 150 ohms
• 170 ohms
• 200 ohms 240 ohms 300 ohms 400 ohms 600 ohms
• 1200 ohms

Cable length = 200mm with 3mm Faston

Connection:

• Yellow = channel 1 input (+)
• Orange = Channel 1 Output (+)
• Blue = input channel 2 (+)
• Red = Output Channel 2 (+)
• Gray = input mass (-)
• Black = output surface (-)

Connection: 1 CAN-BUS REALIS for 1 pair of indicators.
