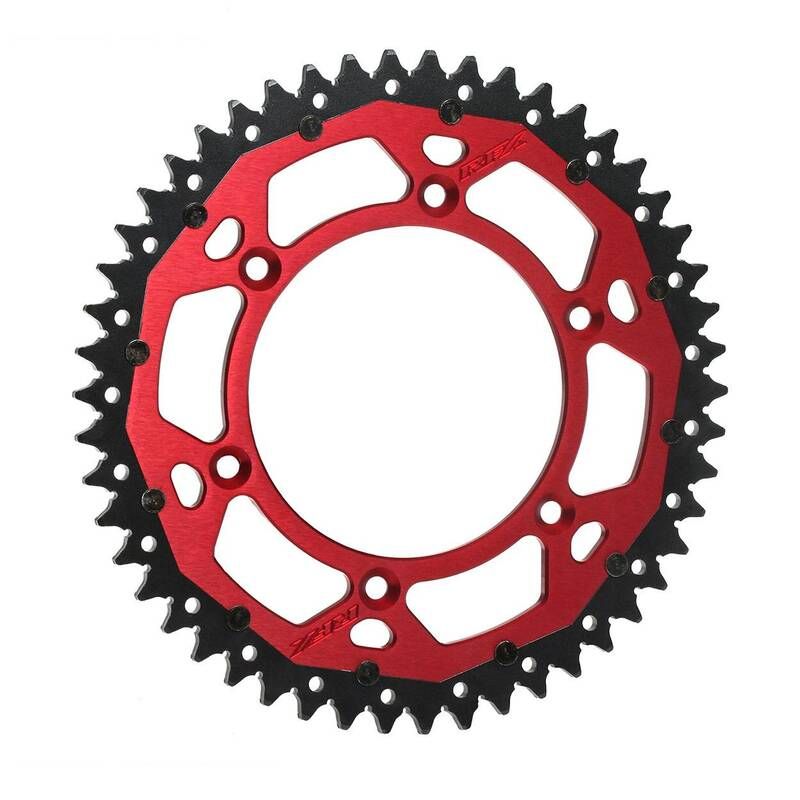

Rear sprocket RFX Pro Series CR 125 R (JE01) - Steel/Aluminium - 520

Rear sprocket RFX Pro Series CR 125 R (JE01) - Steel/Aluminium - 520

The RFX Pro Series Armalite sprockets are designed and tested at the highest level by the best racing teams in the World and British Championships.

The two-ring design ensures maximum gear performance, reduced weight thanks to the 7075-T6 aluminum center, and long tooth life thanks to the high-carbon steel outer part.

Armalite gears also feature a hex drive between the inner and outer rings, which is a revolutionary technology for gears and maximizes the drive between the two parts and reduces the force on the rivets to zero unlike the competition.

Features:

• CNC 7075 Aerospace Aluminum Inner Ring
• HCS outer ring
• Hexagonal drive between inner and outer ring
• CAD designed profile for ease of use.
• New style mud clearance channels to reduce wear.
• The rigid construction increases torsional strength.
• Colored anodizing for a factory look on the bike.

Installation instructions:

• Start with the bike on a stand with the rear wheel raised off the ground.
• Remove the chain and wheel from the bike.
• While holding the hex key, loosen the nuts using a wrench.
• Remove all nuts and the old sprocket.
• Clean the hub, making sure it is clean and free of dirt.
• Take the new sprocket and place it on the hub, making sure the bolt holes are in place.
• Clean the sprocket bolts and nuts.
• Apply blue loctite to each bolt and insert it into the holes.
• Screw the nuts onto the bolts by hand, making sure that the locking seals are intact and in good condition.
• Hold the hex wrench in place and tighten the nuts evenly.
• Increase the torque of nuts and bolts in accordance with the operating manual.
• Place the wheel back on the bike, making sure the chain is properly aligned and tightened according to the manufacturer's specifications.
