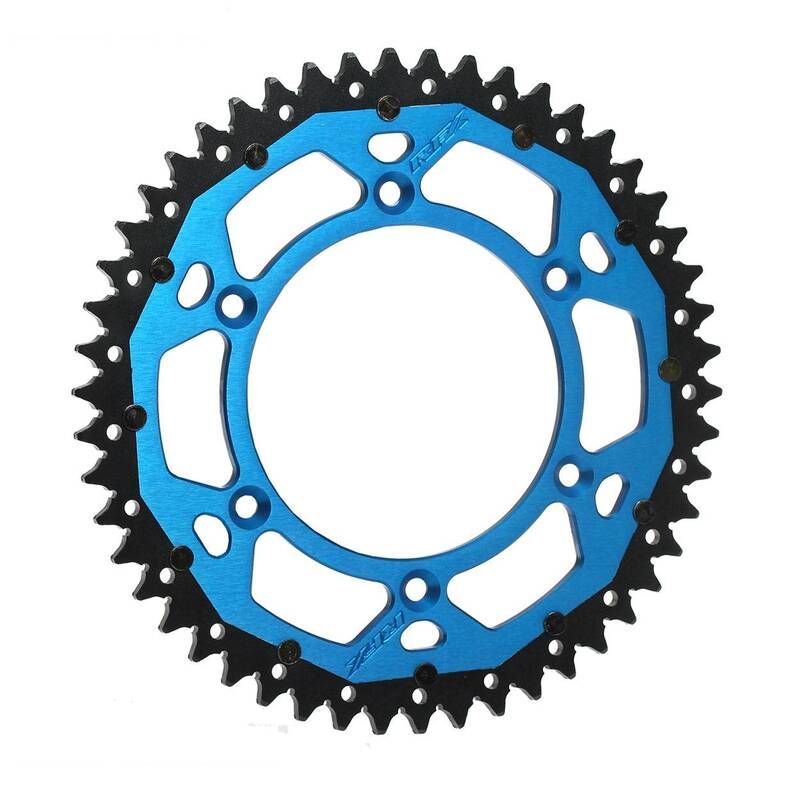

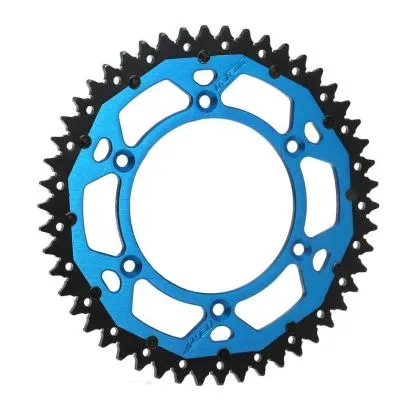

Rear sprocket RFX Pro Series EN 300 4T FI ES - 520

Rear sprocket RFX Pro Series EN 300 4T FI ES - 520

The RFX Pro Series Armalite sprockets are designed and tested at the highest level by the best racing teams from the World and British Championships.

The two-ring design ensures maximum gear performance, reduced weight thanks to the 7075-T6 aluminum center, and long tooth life thanks to the high-carbon steel outer part.

Armalite gears also feature a hex drive between the inner and outer rings, which is a revolutionary technology for gears and maximizes the drive between the two parts and reduces the force on the rivets to zero unlike the competition.

Features of the Pro Series Armalite Gears:

• CNC 7075 Aerospace Aluminum Inner Ring
• HCS outer ring
• Position of the hexagonal disc between the inner and outer rings
• CAD designed profile for ease of use.
• New style mud clearance channels to reduce wear.
• The rigid construction increases torsional strength.
• Colored anodizing for a factory look on the bike.

Installation instructions:

• Start with the bike on a stand with the rear wheel raised off the ground.
• Remove the chain and wheel from the bike.
• While holding the hex key, loosen the nuts using a wrench.
• Remove all nuts and the old sprocket.
• Clean the hub, making sure it is clean and free of dirt.
• Take the new sprocket and place it on the hub, making sure the bolt holes are in place.
• Clean the sprocket bolts and nuts.
• Apply blue loctite to each bolt and insert it into the holes.
• Screw the nuts onto the bolts by hand, making sure that the locking seals are intact and in good condition.
• Hold the hex wrench in place and tighten the nuts evenly.
• Increase the torque of nuts and bolts in accordance with the operating manual.
• Place the wheel back on the bike, making sure the chain is properly aligned and tightened according to the manufacturer's specifications.
