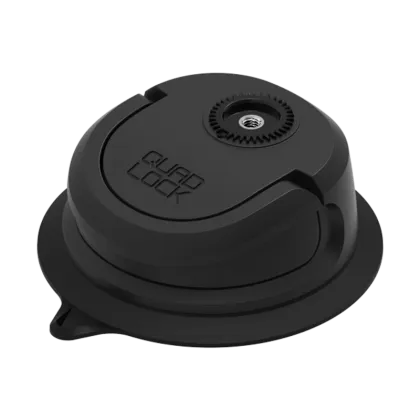

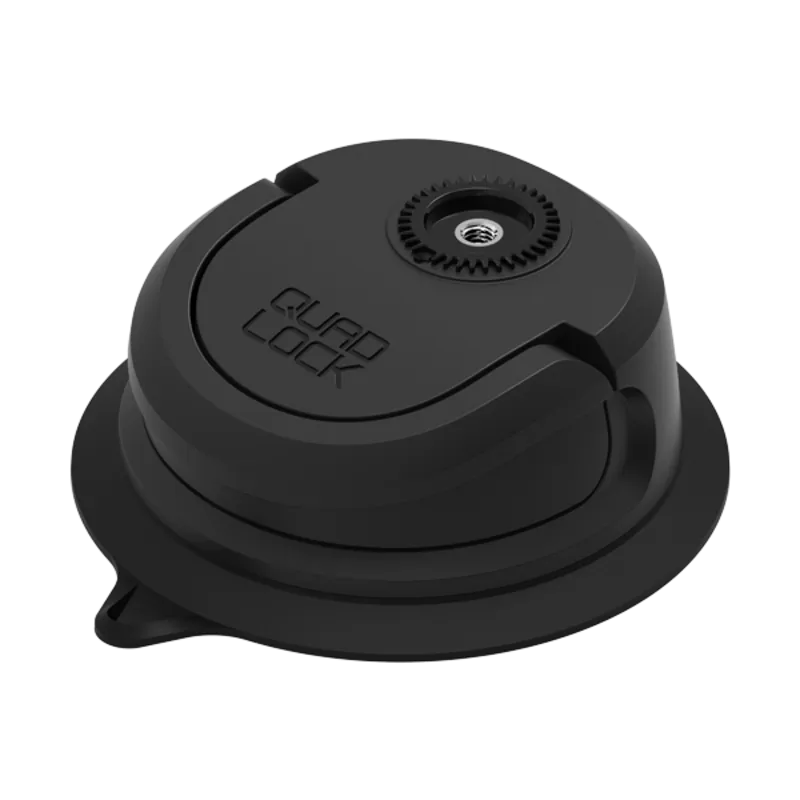

QUAD LOCK 360 Suction Base

QUAD LOCK 360 Suction Base

Relocatable, high-strength suction for universal installation. Lever-operated suction makes quick transitions between applications easy.

Securely mounts to smooth, non-porous surfaces such as windshields and dashboards, making it ideal for use in marine, aviation and propulsion applications.

The suction base is able to withstand ambient temperatures ranging from -10°C to 50°C (14°F to 122°F) without loss of suction.

It is recommended that you include both ARM and HEAD to provide enough clearance for the lever, unless it is combined with an action camera head, which allows enough clearance without the need for an arm.

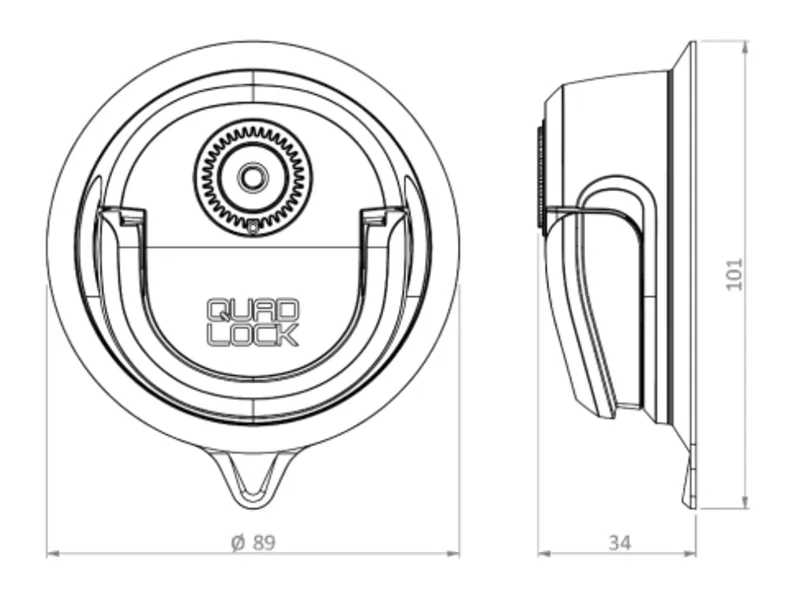

Technical specifications

• Suitable for smooth, non-porous surfaces (>1m radius of curvature)
• Suitable for flat and slightly curved surfaces
• The suction cup is durable and can be repositioned
• Easy to use lock and unlock lever
• Glass nylon body
• Quad Lock 360™ ARM is not required when combined with Quad Lock 360™ Action Camera Head
• Quad Lock 360™ ARM is required with all other HEADS to provide sufficient clearance to lock and unlock the suction base
• -10°C to +50°C (14°F to 122°F) ambient / outdoor temperature
• Holds up to 1.2 kg (2.64 lbs)
• Surface Guidelines

The suction base can be attached to a number of different flat and slightly curved surfaces, but is not intended for highly curved surfaces (ie <1m radius of curvature).

The suction base will adhere to smooth, non-textured, non-porous surfaces such as:

Glass or plastic such as computer or acrylic (eg windscreens)

Smooth painted or powder coated metal or steel (e.g. vehicle bodies)

Fiberglass with gelcoat or marine paint (eg boat cladding)

Slightly curved surfaces (>1m radius of curvature)

Recommended apps:

• Cars / 4x4 / 4WD
• Boats
• Caravans
• Light aircraft
• Any low vibration item

Not recommended for the following substrates:

• Organic materials such as leather, unsealed wood or fabric
• A soft touch, rough or textured finish or paint
• Although possible, we do not recommend using the suction base on the following vehicles.

Motorcycles Scooters ATV

Anything that causes strong vibrations or is constantly exposed to the elements

Clean the surface with a damp cloth and let it dry before fixing.

Make sure the mounting position does not interfere with vehicle safety features such as airbags.
