QUAD LOCK USB charger

QUAD LOCK USB charger

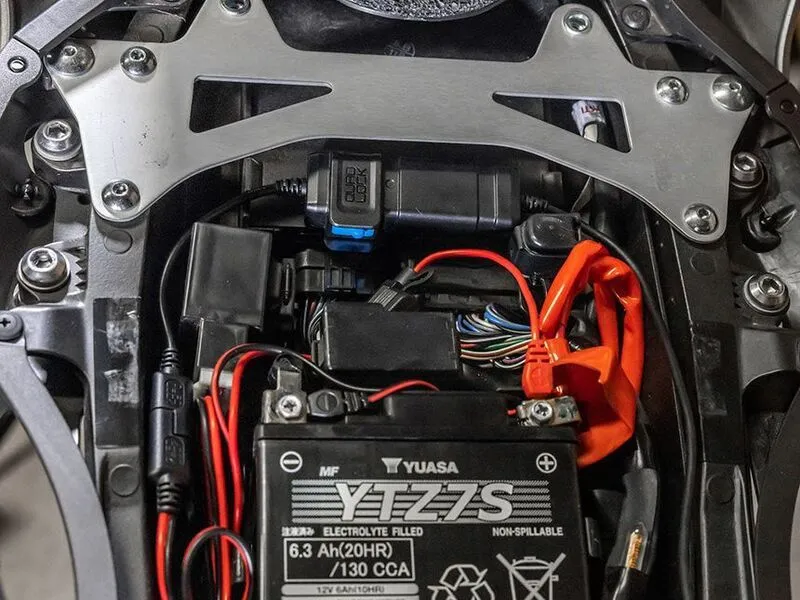

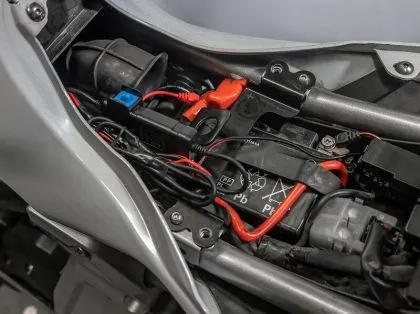

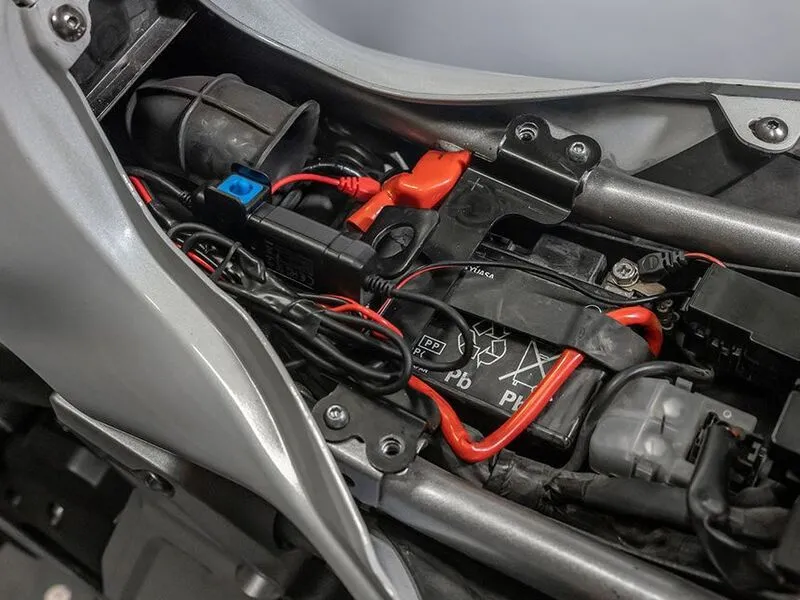

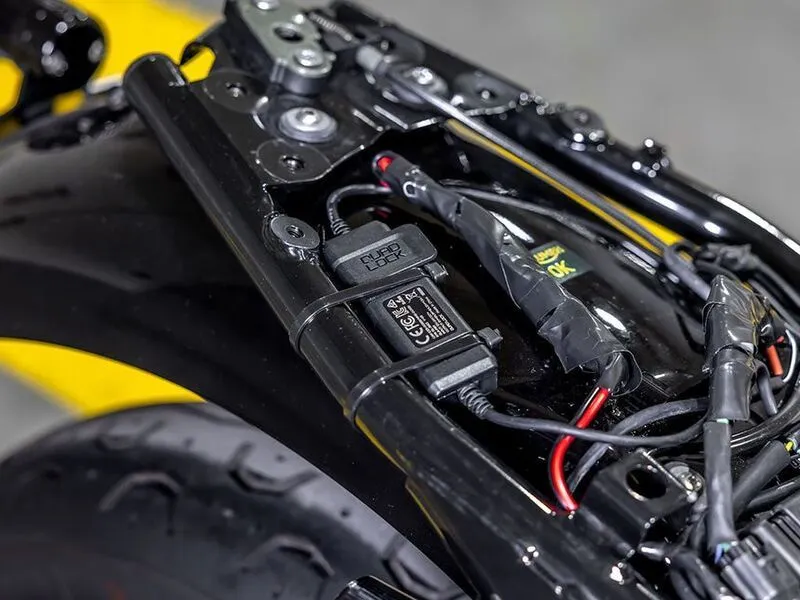

The Waterproof Quad Lock® 12V to USB Smart Adapter comes with everything you need to power your weatherproof Quad Lock® wireless charging head from a motorcycle, boat or caravan.

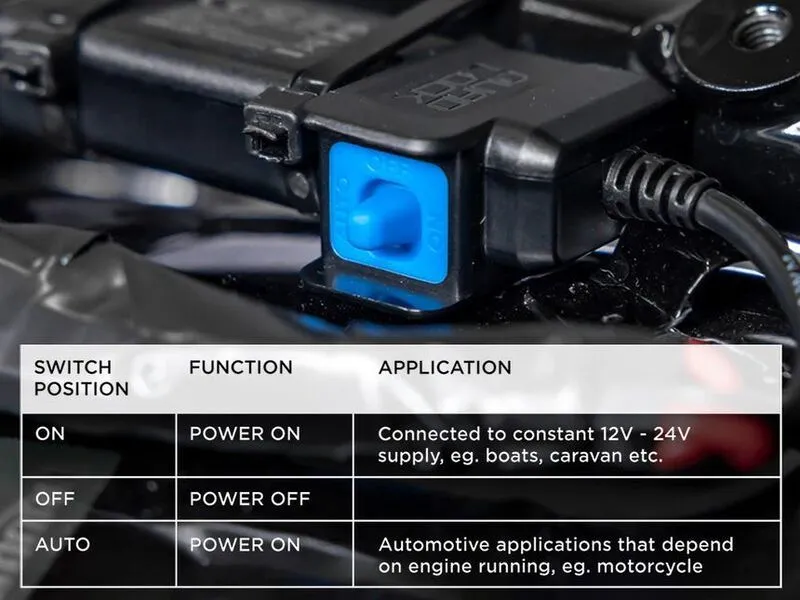

MULTIPLE SWITCHING STATES

Easily switch the smart adapter between On, Off and Automatic. Use On when connecting the Smart Adapter to a permanent 12V - 24V power source such as your boat or caravan.

Use the Auto function to keep the device off until the input voltage rises above 13.5V, and turn it off when the input voltage drops below 12.5V. Perfect for your motorcycle, SUV, etc. to avoid draining the battery.

REVERSE POLARITY PROTECTION AND BUILT-IN FUSE

Reverse polarity protection saves your battery in case the ring terminal cables are connected to the wrong battery terminals.

And the built-in fuse with a nominal capacity of 3 A and a quick blow prevents the battery from draining in the rare case of a failure.

Included in the set:

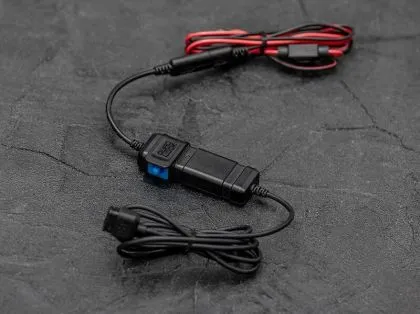

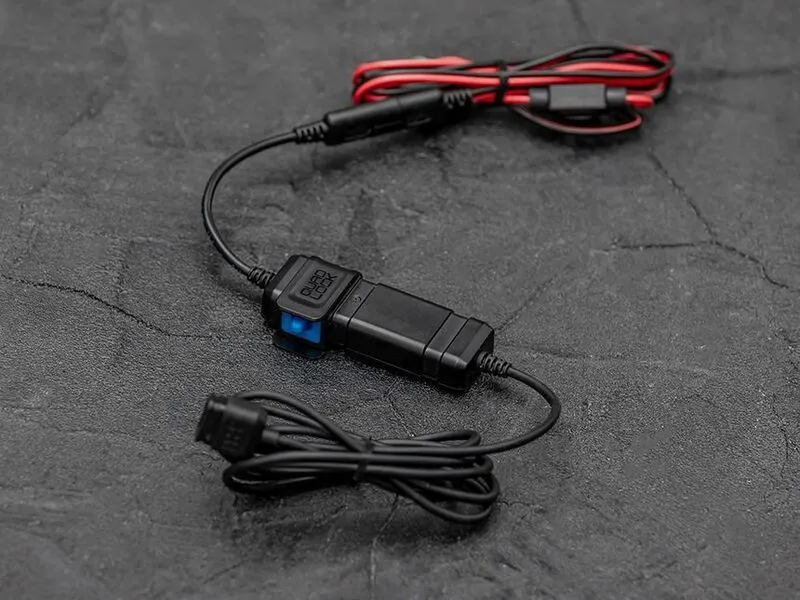

1 x Quad Lock® Waterproof Adapter 12V to USB Smart with 1.5m USB-A female port and 10cm SAE hardwired cable

1 x 1M cable SAE to ring terminal with built-in fuse

1 x USB-A sealing boot for USB-A to USB-C cable, supplied with weatherproof wireless charging head

5 x zip ties

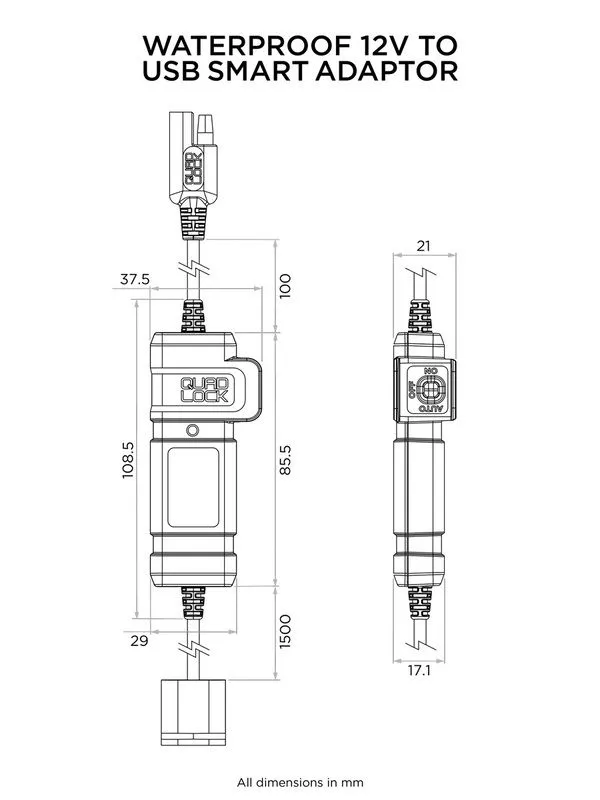

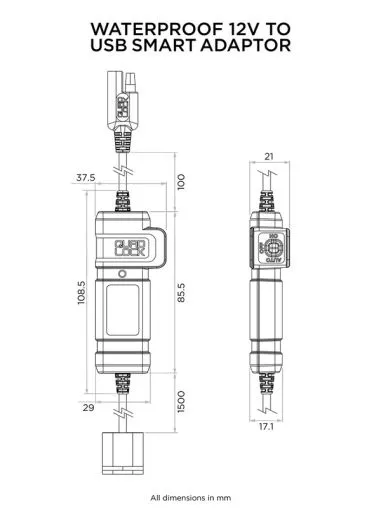

Technical specifications

Output: USB-A up to 18W max. (5V/3A, 9V/2A, 12V/1.5A)

Input: 12V - 24V DC

Auto-switch mode provides power only when the engine is running to avoid draining the battery

Reverse polarity protection

Built-in fuse

Waterproof housing of the smart adapter 12V to USB, made of polycarbonate construction

TPU switch

PVC, SAE, USB-A cables and over-mold ring terminals

Brass ring terminals

Waterproof module and cable housing of the smart adapter 12V to USB with class IP66

IP64 rated USB seal shoe cover
