QUAD LOCK Brake/Clutch Master Cylinder mounting system

QUAD LOCK Brake/Clutch Master Cylinder mounting system

The Quad Lock® Brake/Clutch Mount is the ideal solution for motorcycles that require mounting on a brake/clutch stand.

SECURE INSTALLATION

The Quad Lock® Brake/Clutch Mount attaches to your motorcycle's brake/clutch mount using high-strength fasteners with knurled spots on the flange for complete security.

The patented two-stage locking head means you can ride with confidence, knowing your smartphone will stay secure on your bike without the need for cumbersome ropes, straps, tapes or magnets, whatever the terrain.

OPTIMAL VIEWING ANGLE

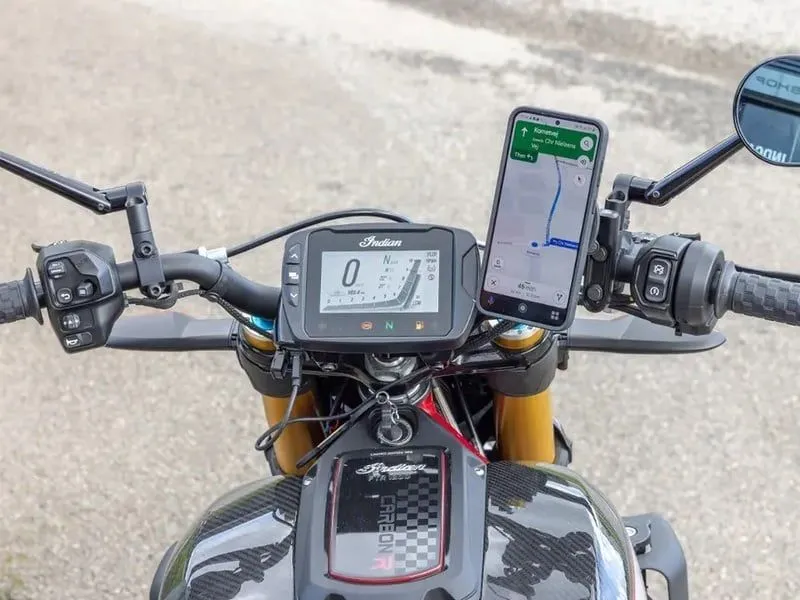

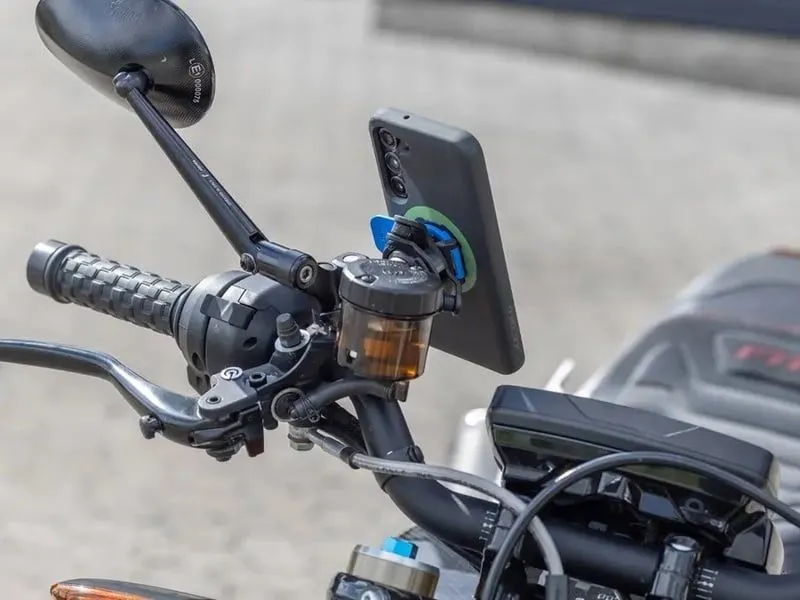

The mount can be attached to your motorcycle's clutch or brake lever with two holes on the left or right side. An internal mounting head gives you full access to all your controls.

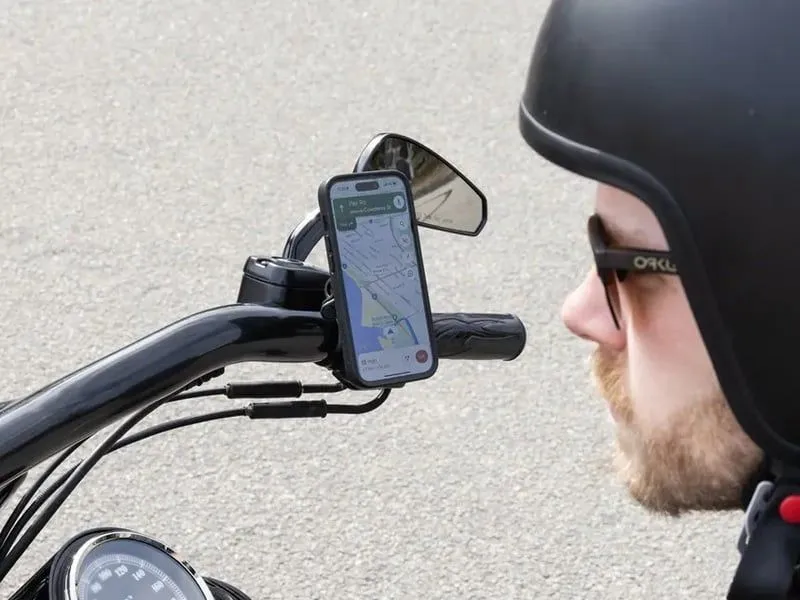

The mounting head can be rotated 180 degrees as well as finer tilt angle adjustments, giving you the perfect viewing position for your smartphone on any bike.

ELECTRICAL DESIGN

The Quad Lock® brake/clutch assembly uses strong materials, with a minimal design that makes it look at home on any motorcycle.

BRAKE/CLUTCH ASSEMBLY

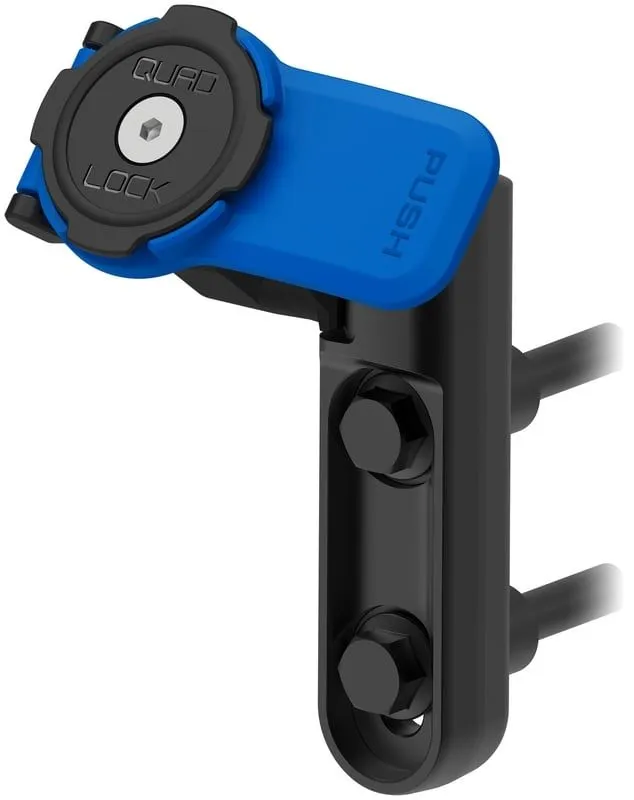

1 x Quad Lock® brake/clutch mount

2 x M6 x 45 knurled flange bolts with thread lock

2 x UNC 1/4"-20 x 1.75 Serrated Flange Bolts with Thread Lock

2 x spacers

1 x Combination Allen Key 3mm/4mm

BRAKE/CLUTCH ASSEMBLY

Made of tough nylon with glass

Die-cast aluminum base

Stainless steel pivot pins and threaded inserts

High strength steel fasteners and microencapsulated thread lock

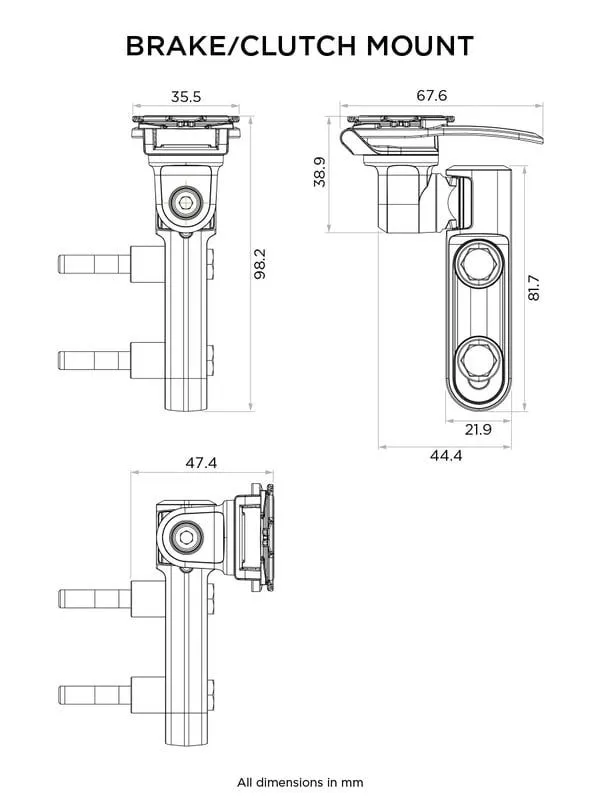

Mounting Base Hole Pitch 32mm - 38mm (1 1/4" - 1 1/2")

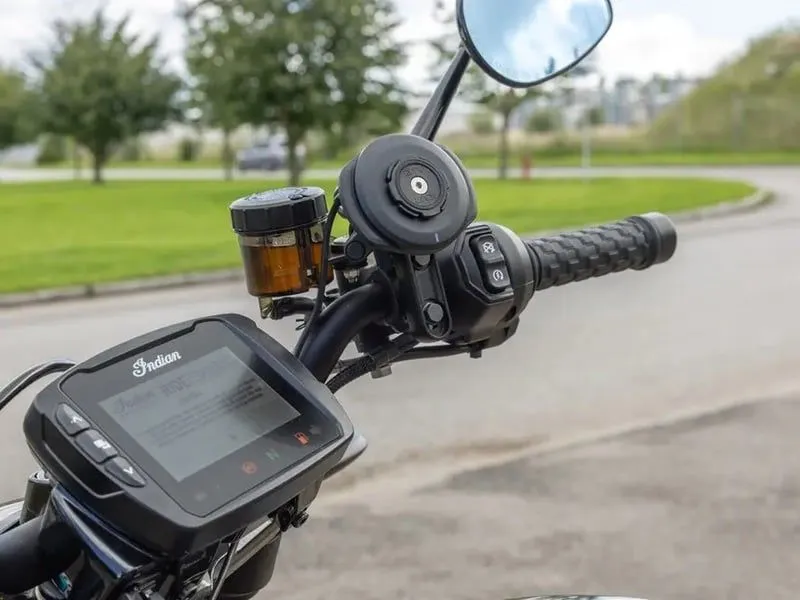

The index head is offset inward from the handlebar controls

It is not handheld and can be mounted on the left or right side of the motorcycle
